Loading GTFS Data into PostgreSQL

In this post, we will see how to load GTFS data into PostgreSQL. GTFS stands for General Transit Feed Specification (originally, it was called Google Transit Feed Specification) and allows public transit agencies to publish their schedules on the web.

The task requires the following steps:

  1. Download the GTFS data for NYMTA
  2. Create a database schema for loading the GTFS data
  3. Load the data on a Postgresql/ PostGIS database

Step 1: Download the GTFS data for NYMTA

We will start with the transit feed for NYMTA as an example. The first step is getting access to the feed. This is available at the following site.




We can go ahead and download the data on our machine. Next step is to import the data into a database, which we will do in the next step.

Step 2: Create a database and user to load the data

My database of choice is Postgresql and PostGIS, so that is what I used. The first step is to create the database and enable spatial extension.

The first script drops a previously existing database, creates the database and creates the user and schema.

create_database_nymta.sh
sudo -u postgres dropdb -e nymtadb
sudo -u postgres createdb -e nymtadb
sudo -u postgres psql -a -U postgres -f create_user_nymta.sql



This script calls the following SQL script to create the user and schemas.

create_user_nymta.sql
REVOKE SELECT ON spatial_ref_sys, geometry_columns FROM nymta;
DROP EXTENSION postgis;
DROP schema nymta cascade;
DROP schema nymstaging cascade;
DROP OWNED BY nymta;
DROP USER nymta;
CREATE USER nymta PASSWORD 'nymta';
CREATE SCHEMA nymta authorization nymta;
CREATE SCHEMA nymstaging authorization nymta;
CREATE EXTENSION postgis;
GRANT SELECT ON spatial_ref_sys, geometry_columns TO nymta;

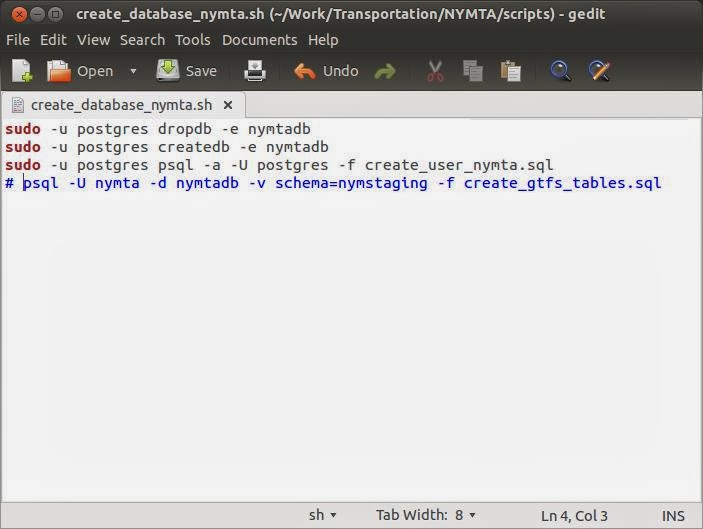

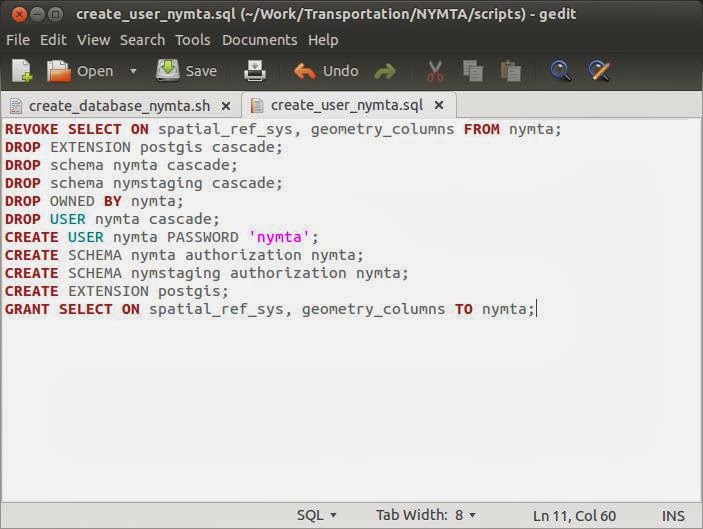

This is how the above script looks in my editor.



To run the script, I typed

$ ./create_database_nymta.sh

Executing the above scripts, we will get prompted for sudo password once. Here is the console output from the execution on my machine, for reference.


Step 3: Load GTFS data on RDBMS for easier handling

Next step is to load the GTFS data in RDBMS for handling. First step is to create a target schema for storing the data.

Here is my script for creating the database schema for creating GTFS tables in my staging schema.

create_gtfs_tables.sql

DROP TABLE GTFS_AGENCY;
DROP TABLE GTFS_ROUTES;
DROP TABLE GTFS_STOPS;
DROP TABLE GTFS_TRIPS;

DROP TABLE GTFS_STOP_TIMES;
DROP TABLE GTFS_SHAPES;
DROP TABLE GTFS_CALENDAR;
DROP TABLE GTFS_CALENDAR_DATES;
DROP TABLE GTFS_TRANSFERS;

/*
agency_id,agency_name,agency_url,agency_timezone,agency_lang,agency_phone
MTA NYCT,MTA New York City Transit, http://www.mta.info,America/New_York,en,718-330-1234
*/

CREATE TABLE GTFS_AGENCY
(
agency_id VARCHAR(10),
agency_name VARCHAR(50),
agency_url VARCHAR(100),
agency_timezone VARCHAR(50),
agency_lang VARCHAR(2),
agency_phone VARCHAR(20)
);

/*
routes.txt
route_id,agency_id,route_short_name,route_long_name,route_desc,route_type,route_url,route_color,route_text_color
1,MTA NYCT,1,Broadway - 7 Avenue Local,"Trains operate between 242 St in the Bronx and South Ferry in Manhattan, most times",1,http://www.mta.info/nyct/service/pdf/t1cur.pdf,EE352E,
*/

CREATE TABLE GTFS_ROUTES
(
route_id NUMERIC(5),
agency_id NUMERIC(3),
route_short_name VARCHAR(10),
route_long_name VARCHAR(100),
route_desc VARCHAR(100),
route_type NUMERIC(3),
route_url VARCHAR(100),
route_color VARCHAR(8),
route_text_color VARCHAR(8)
);
/*
stops.txt
stop_id,stop_code,stop_name,stop_desc,stop_lat,stop_lon,zone_id,stop_url,location_type,parent_station
101,,Van Cortlandt Park - 242 St,,40.889248,-73.898583,,,1,
*/

CREATE TABLE GTFS_STOPS
( stop_id NUMERIC(10),
stop_code VARCHAR(10),
stop_name VARCHAR(100),
stop_desc VARCHAR(100),
stop_lat NUMERIC(38,8),
stop_lon NUMERIC(38,8),
zone_id NUMERIC(5),
stop_url VARCHAR(100),
location_type NUMERIC(2),
parent_station NUMERIC(38)
);

/*
trips.txt
route_id,service_id,trip_id,trip_headsign,direction_id,block_id,shape_id
1,A20130803WKD,A20130803WKD_000800_1..S03R,SOUTH FERRY,1,,1..S03R
*/
CREATE TABLE GTFS_TRIPS
(
route_id NUMERIC(10),
service_id VARCHAR(10),
trip_id NUMERIC(10),
trip_headsign VARCHAR(10),
trip_short_name VARCHAR(50),
direction_id NUMERIC(2),
block_id NUMERIC(10),
shape_id NUMERIC(10)
);


/*
stop_times.txt
trip_id,arrival_time,departure_time,stop_id,stop_sequence,stop_headsign,pickup_type,drop_off_type,shape_dist_traveled
A20130803WKD_000800_1..S03R,00:08:00,00:08:00,101S,1,,0,0,
*/

CREATE TABLE GTFS_STOP_TIMES
(
trip_id NUMERIC(10),
arrival_time TIMESTAMP,
departure_time TIMESTAMP,
stop_id NUMERIC(10),
stop_sequence NUMERIC(10),
stop_headsign VARCHAR(30),
pickup_type VARCHAR(100),
drop_off_type VARCHAR(100)
);

/*
shapes.txt
shape_id,shape_pt_lat,shape_pt_lon,shape_pt_sequence,shape_dist_traveled
4..N06R,40.668897,-73.932942,0,
*/

CREATE TABLE GTFS_SHAPES
(
shape_id NUMERIC(6),
shape_pt_lat NUMERIC,
shape_pt_lon NUMERIC,
shape_pt_sequence NUMERIC(6),
shape_dist_traveled NUMERIC
);

/*
calendar_dates.txt
service_id,date,exception_type
*/

CREATE TABLE GTFS_CALENDAR_DATES
(
service_id VARCHAR(10),
exception_date DATE,
exception_type VARCHAR(10)
);

/*
calendar.txt
service_id,monday,tuesday,wednesday,thursday,friday,saturday,sunday,start_date,end_date
A20130803WKD,1,1,1,1,1,0,0,20130803,20141231
*/

CREATE TABLE GTFS_CALENDAR
(
service_id VARCHAR(10),
monday NUMERIC(1),
tuesday NUMERIC(1),
wednesday NUMERIC(1),
thursday NUMERIC(1),
friday NUMERIC(1),
saturday NUMERIC(1),
sunday NUMERIC(1),
start_date DATE,
end_date DATE
);

/*
transfers.txt
from_stop_id,to_stop_id,transfer_type,min_transfer_time
101,101,2,180
*/

CREATE TABLE GTFS_TRANSFERS
(
from_stop_id NUMERIC(10),
to_stop_id NUMERIC(10),
transfer_type NUMERIC(3),
min_transfer_time NUMERIC(6)
);

To execute the script we need to run the following command on the terminal

$ psql -U nymta -d nymtadb -v schema=nymstaging -f create_gtfs_tables.sql

Executing the same, creates the neccessary tables on our schema.


Next step is to download some spatial data from public sources. We can download the Street centerline data for NYC from the following website.




Opening the data in desktop GIS, we can see the amount of data available.




Next step, I wanted to do was to load the GTFS data into the staging schema we just created. For that, we will use GeoKettle which is a utility for loading data from text files into PostgreSQL. This I will cover in my next post.
