Loading Shape file data into PostGIS

In this post, we are going to load some shape file data into PostGIS. Loading Shape file data into PostGIS involves two steps. These are:

1. Convert Shape file to SQL Insert statements
2. Execute the SQL Insert statements on a PostGIS instance.

Let us start with the first step.

PostGIS ships with a tool for converting shape files to SQL insert scripts for PostGIS called shp2pgsql described below.

shp2pgsql

As the name suggests, shp2pgsql converts shape files into PostGIS compatible SQL Insert scripts. The tool itself is deployed in a sub-folder called “loader” in the primary installation folder. It should get built when the primary PostGIS tool is built on your machine as part of your installation as described in my previous post on downloading and installing PostGIS.

Opening a terminal window and running the shp2pgsql command should display all the runtime options and switches.

If you are not shown the above options, it may be that shp2pgsql is not in your path. Adding shp2pgsql (or any other command) to your path is easy as described in my post on the topic.

Let us start with an example with some real data. I am using certain publicly available datasets from New York Dept of Transportation for this exercise.

Obtaining and Loading data into PostGIS

The data consists of the following data obtained from following public sources.

ID	Name	Format	URL
1	AADT	Shape file format	https://www.dot.ny.gov/divisions/engineering/applications/traffic-data-viewer/traffic-data-viewer-repository/2010_AADT_Line.zip
2	AADT Short Count	Shape File Format	https://www.dot.ny.gov/divisions/engieering/applications/traffic-data-viewer/traffic-data-viewer-repository/2010_Short_Count.zip
3	AADT Continuous Count	Shape File Format	https://www.dot.ny.gov/divisions/engineering/applications/traffic-data-viewer/traffic-data-viewer-repository/2010_Continuous_Count.zip
4	Station Locations 2010	Excel	https://www.dot.ny.gov/divisions/engineering/applications/traffic-data-viewer/traffic-data-viewer-repository/Station_Locations_2010.xls
5	NYS Milepoint Referencing System	Shape File Format	http://gis.ny.gov/gisdata/fileserver/?DSID=1111&file=DOT_MilepointRoute.zip
6	FHWA Urban Areas 2000	Shape File Format	http://gis.ny.gov/gisdata/fileserver/?DSID=1105&file=fhwa2000.zip
7	County Boundaries	Shape File Format	http://gis.ny.gov/gisdata/fileserver/?DSID=910&file=nyshore.zip

I proceeded to download these files from their respective locations. Once we have downloaded all the datasets, we need to extract these files for loading on PostGIS. To achieve this I created a small script that looks as follows:

extract_GISData.sh

mkdir ../Data/GISData

unzip -o 2010_AADT_Line.zip -d ../Data/GISData

unzip -o 2010_Short_Count.zip -d ../Data/GISData

unzip -o fhwa2000.zip -d ../Data/GISData

unzip -o nyshore.zip -d ../Data/GISData

unzip -o 2010_Continuous_Count.zip -d ../Data/GISData

unzip -o DOT_MilepointRoute.zip -d ../Data/GISData

unzip -o nyintch.zip -d ../Data/GISData

My final script looks as below...

Now we need to upload these extracted shape files to PostGIS.

To execute this file, we need to make the file executable and open a terminal window to execute it using the following commands.

$ chmod a+x *.sh

$ ./extract_GISData.sh

In the following screenshot, we can see the script running on my machine.

Next we need to load the extracted shape file data into the PostGIS database using the shp2pgsql utility. Let us create a script that will process each individual file separately and create the insert scripts from each shape file.

shp2pg_GISData.sh

rmdir --ignore-fail-on-non-empty ../Data/GISData/loadscripts

mkdir ../Data/GISData/loadscripts

shp2pgsql -s 26918 -d -I -g geom ../Data/GISData/2010_AADT.shp nystaging.2010_AADT> ../Data/GISData/loadscripts/insert_2010_AADT.sql

shp2pgsql -s 26918 -d -I -g geom ../Data/GISData/counties.shp nystaging.counties> ../Data/GISData/loadscripts/insert_counties.sql

shp2pgsql -s 26918 -d -I -g geom ../Data/GISData/2010_Continuous_Count.shp nystaging.2010_Continuous_Count > ../Data/GISData/loadscripts/insert_2010_Continuous_Count.sql

shp2pgsql -s 26918 -d -I -g geom ../Data/GISData/FHWAUrbanAreas2000.shp nystaging.FHWAUrbanAreas2000> ../Data/GISData/loadscripts/insert_FHWAUrbanAreas2000.sql

shp2pgsql -s 26918 -d -I -g geom ../Data/GISData/2010_Short_Counts.shp nystaging.2010_Short_Counts> ../Data/GISData/loadscripts/insert_2010_Short_Counts.sql

shp2pgsql -s 26918 -d -I -g geom ../Data/GISData/MilepointRoute.shp nystaging.Milepointroute> ../Data/GISData/loadscripts/insert_MilepointRoute.sql

In the above script, -d option will dump the original table and recreate it. Option -I will create a spatial index on the geometric column where as -g specifies the name of the geometric column.

Here is my script in the gedit editor.

Now we will save the file and execute it. To make the file executable, we need to run the command chmod

$ chmod a+x *.sh

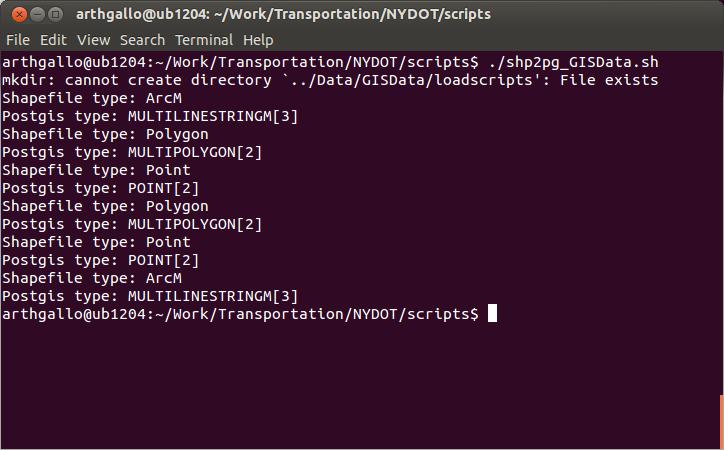

$ ./shp2pg_GISData.sh

Now that the files have been created, we can upload them to PostGIS. We are of course going to use the psql command for uploading the insert scripts. Here are the command line switches to the psql command.

I first needed to create a schema in a pre-existing database. To do so, I created a script that looks like as follows.

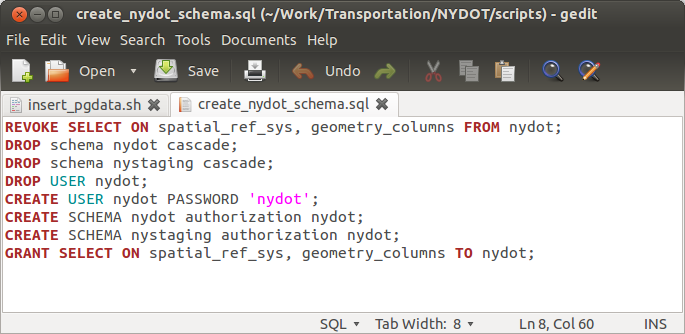

create_nydot_schema.sql

REVOKE SELECT ON spatial_ref_sys, geometry_columns FROM nydot;
DROP schema nydot cascade;
DROP schema nystaging cascade;
DROP USER nydot;
CREATE USER nydot PASSWORD 'nydot';
CREATE SCHEMA nydot authorization nydot;
CREATE SCHEMA nystaging authorization nydot;
GRANT SELECT ON spatial_ref_sys, geometry_columns TO nydot;

Then, to execute I needed to run it as user postgres. Here are the commands for logging in as user postgres and executing the script:

$ su – postgres

postgres$ psql -d nywarehouse -f /home/arthgallo/Work/Transportation/NYDOT/scripts/create_nydot_schema.sql

Now we are ready to execute the insertion scripts on PostGIS. We need to create a file that will execute each if the insert scripts generated at previous steps. As most may know, psql does not allow supplying passwords in the command line. It has to be set in the environment variables. This post describes how to set the password in .pgpass file on Ubuntu/ Linux environment.

Also, I want to load the spatial data into the staging schema instead of the primary warehouse schema first. To do so, I need to specify the staging schema in the command line input parameters. This is not a standard capability in the psql command line options, however, it is very easy to do so, as described in my post on specifying schema in the command line psql parameters.

Here is the complete script for loading the files.

insert_pgdata.sh

rm ../Data/GISData/loadscripts/*.log

psql -U nydot -d nywarehouse -v schema=nystaging,public -f ../Data/GISData/loadscripts/insert_2010_AADT.sql -L ../Data/GISData/loadscripts/insert_2010_AADT.log
psql -U nydot -d nywarehouse -v schema=nystaging,public -f ../Data/GISData/loadscripts/insert_2010_Continuous_Count.sql -L ../Data/GISData/loadscripts/insert_2010_Continuous_Count.log
psql -U nydot -d nywarehouse -v schema=nystaging,public -f ../Data/GISData/loadscripts/insert_2010_Short_Counts.sql -L ../Data/GISData/loadscripts/insert_2010_Short_Counts.log
psql -U nydot -d nywarehouse -v schema=nystaging,public -f ../Data/GISData/loadscripts/insert_counties.sql -L ../Data/GISData/loadscripts/insert_counties.log
psql -U nydot -d nywarehouse -v schema=nystaging,public -f ../Data/GISData/loadscripts/insert_FHWAUrbanAreas2000.sql -L ../Data/GISData/loadscripts/insert_FHWAUrbanAreas2000.log
psql -U nydot -d nywarehouse -v schema=nystaging,public -f ../Data/GISData/loadscripts/insert_MilepointRoute.sql -L ../Data/GISData/loadscripts/insert_MilepointRoute.log

Here is a screenshot of the script on my screen.

We can execute the script using the following psql command

$ ./insert_pgdata.sh

The script when running properly shows a bunch of INSERT statements as shown below.

Now that the data is loaded, we can view the same in uDig. If you don't have uDig installed on your machine, you can follow my post on uDig installation to set it up. The following screen shows us accessing the newly loaded datasets in uDig.

Now, we can see our data loaded in PostGIS.

That's it. We are done!
